VME-MB-Z004 servo control board

VME-MB-Z004 servo control board

Product Details Introduction

VME-MB-Z004 servo control board, GE Fanuc VME bus high-performance motion control board.

Standard VME bus interface, compatible with VME industrial chassis, plug and play

Multi axis servo control capability, supporting high-precision position/velocity/torque control

Built in high-performance processor, fast motion algorithm response and strong real-time performance

Onboard large capacity cache (64K x 8-bit) with high data processing efficiency

24VDC industrial standard power supply, power consumption<1W, low-energy design

High speed data transmission (up to 80MHz) to meet the requirements of high-speed synchronous control

Integrated NVRAM (8KB), parameter power-off saving, automatic power on loading

Multi channel digital I/O, capable of directly connecting sensors and actuators

Optoelectronic isolation signal design, anti-interference, protection board and peripherals

Industrial grade wide temperature range (-40 ℃~+85 ℃), suitable for harsh workshop environments

Compact board layout, standard VME size, saving installation space

Surface mount technology+industrial PCB, earthquake and vibration resistance, long-term stability

Support pulse/analog command output, compatible with mainstream servo drivers

Compatible with GE Mark VI control system and compatible with redundant architecture systems

Suitable for precision machining, automated production lines, robots, and high-speed positioning scenarios

The VME-MB-Z004 servo control board has strong bus compatibility, high control accuracy, and good stability, making it the core board for industrial motion control.

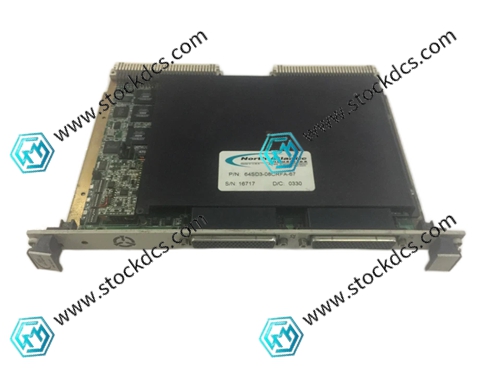

Product imag
