Yokogawa F3SP21-0N Central Controller (CPU Module)

Yokogawa F3SP21-0N is the sequential control CPU module of Yokogawa FA-M3 series PLC. As the system core, it is responsible for program execution, logical operations, and I/O coordination. It is compatible with backboards such as F3BU06-0N, and is high-speed, stable, compact, and reliable, suitable for small and medium-sized automation systems.

Henghe original FA-M3 series dedicated CPU, industrial grade quality, long-term stable operation.

Program capacity 10K steps (Flash storage), data storage 32KB, suitable for small and medium-sized projects.

High speed computation: Basic instructions start at 0.1 μ s/step, application instructions start at 0.5 μ s, with fast response.

Maximum I/O points of 256, expandable digital/analog modules, flexible configuration.

Comes with RS-485 interface, supports Modbus RTU, can connect to HMI and upper computer.

Support extended communication modules, compatible with industrial networks such as Ethernet and PROFINET.

Wide voltage power supply: DC 24V (powered by backplane F3BU06-0N, etc.).

Wide temperature operation: -10 ℃~+55 ℃, storage -25 ℃~+65 ℃, suitable for harsh working conditions.

Built in multiple fault diagnosis: program errors, I/O anomalies, communication failures, and alarms can be checked.

Program password protection to prevent illegal access and tampering, ensuring system security.

Slot installation, tool free insertion and removal, compatible with F3BU04-0N/F3BU06-0N backplane.

Compact structure (28 × 100 × 82mm), weighing approximately 120g, saving cabinet space.

Anti vibration and shock, able to withstand 10% -90% RH without condensation, strong adaptability to industrial sites.

Support hot plugging (with corresponding backplane), maintenance does not require downtime.

Suitable for equipment renovation, production line upgrading, and the construction of small and medium-sized automation new systems.

F3SP21-0N is the standard core controller for Yokogawa FA-M3 series 6-slot systems, with high-speed computing, compact and reliable design, rich interfaces, and easy maintenance as its core.

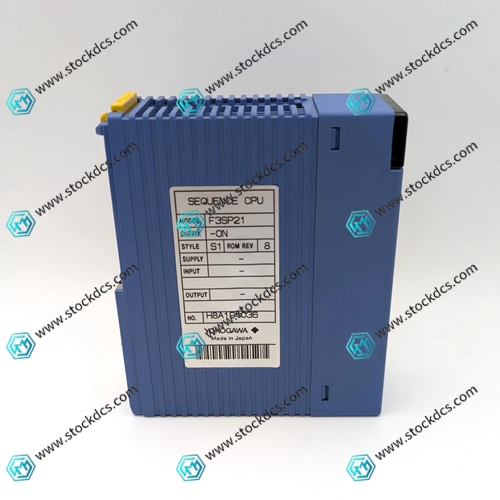

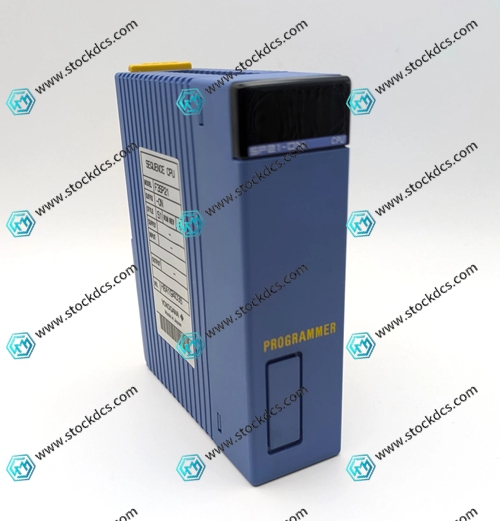

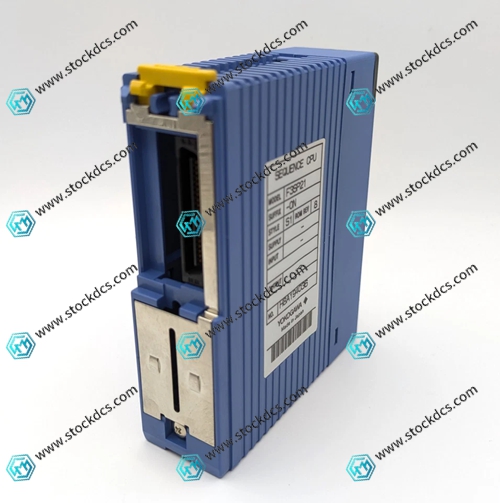

Product imag
