Product Details Introduction

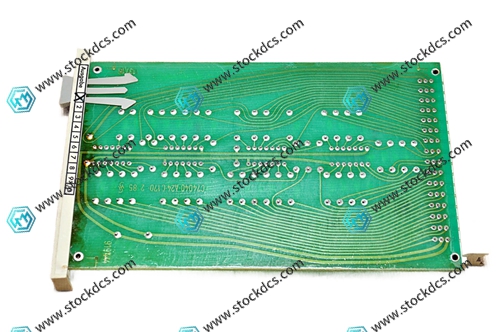

Siemens 6EC1001-0A Printed Circuit Board

Belonging to the early PLC system core PCB module of Siemens Simatic C1 series, it is the basic control unit of the system

The full name of the model is 6EC1001-0A, and the internal label includes C74040-A24-C170-2. It is produced by the original German factory

Positioned as the basic functional board of Simatic C1 system, responsible for system signal conversion, basic logic and communication support

Adopting standard plug-in PCB design, compatible with 19 inch cabinets and backplane bus installation

The physical dimensions are approximately 15.2 × 2.5 × 20.3cm, with a weight of approximately 0.1kg. The structure is compact and easy to install

The working voltage is compatible with the industrial 24V DC standard, with low power consumption and stable operation

Working temperature range -25 ℃~+70 ℃, suitable for harsh industrial site environments

Built in signal conditioning and level conversion circuit, suitable for industrial field digital/analog signal access

Support backplane bus data interaction and seamless collaboration with C1 series I/O and computing modules

Capable of basic fault diagnosis, able to report the operation status and communication abnormalities of the board

Adopting multi-layer PCB technology, it has strong anti electromagnetic interference performance and meets industrial EMC standards

Protection level IP20, to be installed inside the control cabinet, dust-proof and splash proof

Discontinued, the market is dominated by refurbished/second-hand spare parts

Old PLC control systems widely used in early manufacturing, metallurgy, power and other industries

As a core spare part of the system, it ensures the stable operation and maintenance of the old Simatic C1 equipment

The Siemens 6EC1001-0A, as the basic PCB module of the Simatic C1 series, is an indispensable core spare part in old industrial PLC systems due to its stable adaptation, strong anti-interference, and compact design.

Product imag
