Siemens 6DS1618-8CA Binary Input Module

Siemens 6DS1618-8CA is a 48 channel binary (digital) input module specifically designed for Teleperm M/ME systems, specifically designed for highly reliable and redundant DCS systems.

Channel specifications: 48 independent digital inputs, supporting dry contacts and active 24V DC signals.

Redundancy adaptation: Built in PBE and PRA dual driver blocks, perfectly compatible with redundant system architecture.

Signal isolation: Full channel electrical isolation, strong anti-interference, suitable for harsh industrial electromagnetic environments.

Status monitoring: Each channel has independent status indication, supporting online diagnosis and fault location.

Input type: compatible with signals such as NPN/PNP, normally open/normally closed switches, limit switches, buttons, etc.

Response speed: The signal acquisition response is fast, meeting the real-time requirements of process interlocking and protection systems.

System compatibility: Seamless integration with Teleperm M and Teleperm ME series CPUs and racks.

Industrial protection: wide temperature range of -25 ° C to+60 ° C, suitable for dust, vibration, and humid and hot working conditions.

Physical design: Standard 6DS plug-in board, compact size, weight approximately 0.7kg.

Power supply method: Backboard 24V DC power supply, low power consumption, low heat generation.

Protection function: overvoltage, reverse connection, surge protection, enhancing long-term stability.

Application scenarios: On/off acquisition, status monitoring, and safety interlocking of DCS systems in power, chemical, metallurgical, and other industries.

Siemens 6DS1618-8CA has become the core unit for digital signal acquisition in large-scale process control systems due to its high-density, high reliability, and redundancy compatibility characteristics.

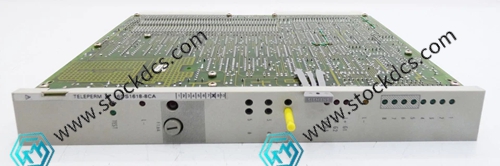

Product imag
