Siemens 6DS1311-8AE I/O Bus Driver Module

Siemens 6DS1311-8AE is a Teleperm M 6DS series dedicated I/O BUS Driver module used to drive and expand remote I/O buses in systems, ensuring stable communication between controllers and distributed I/O sites.

Core function: As an I/O bus driver interface, responsible for signal amplification, driving remote I/O links, and expanding system I/O communication distance.

Bus adaptation: specifically designed for the internal I/O bus of Teleperm M system, fully compatible with 6DS series CPUs and racks.

Electrical isolation: The internal circuit is designed with full isolation, effectively suppressing ground potential difference and industrial electromagnetic interference.

Signal processing: Integrating signal shaping, filtering, and driving capabilities to ensure stable and distortion free long-distance transmission signals.

Channel characteristics: Supports 8 mixed channels of digital I/O, configurable as measurement input or standard I/O signals.

Communication speed: Supports high-speed bus transmission, response time in milliseconds, meeting the real-time requirements of process control.

Power supply method: 24V DC (± 20%) standard power supply, can be directly powered by the system backplane.

Power consumption control: Low power design, typical power consumption ≤ 2.5W, no overheating hazard.

Status indication: Integrated LED running, fault, and communication status lights for online diagnosis.

Industrial protection: IP20 protection level, suitable for dust and humid environments inside control cabinets.

Wide temperature operation: Operating temperature range of -25 ° C to+60 ° C, meeting harsh industrial conditions.

Physical specifications: Standard 6DS plug-in board structure, dimensions approximately 102mm × 25mm × 203mm, weight 0.2kg.

Anti interference: Strong anti vibration and anti impact capabilities, in compliance with heavy industry electromagnetic compatibility standards.

Reliability: Equipped with overcurrent, short circuit, reverse connection protection, high MTBF, suitable for continuous production systems.

Application scenario: Widely used in industries such as power, chemical, and metallurgy for Teleperm M DCS systems, expanding remote I/O sites.

Siemens 6DS1311-8AE is a stable and reliable I/O bus expansion core in traditional DCS systems, ensuring stable distributed I/O communication with strong drive, high isolation, and long-distance transmission characteristics.

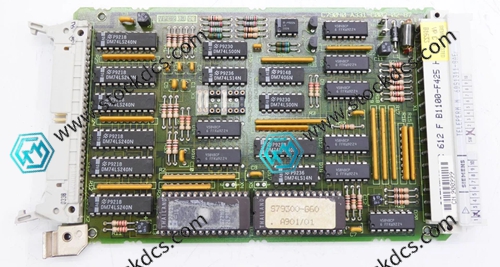

Product imag
