39SDM024DCCBN Standard Independent Module

39SDM024DCCBN Standard Independent Module

Product Details Introduction

39SDM024DCCBN is a 24VDC standard discrete input module for Siemens APACS+system, belonging to the MOORE series (formerly Moore Products), designed specifically for process automation and factory control systems, providing stable and reliable digital signal acquisition.

Core parameters of the product

Brand series: Siemens/Moore APACS+, SDM+standard discrete modules

Model: 39SDM024DCCBN, spare part number 16101-174R/12

Type: 24 channel DC digital input module (DI)

Signal specification: 24VDC input, voltage range 19-30VDC

Input current: Single channel 9.96mA (typical), off state current ≤ 6mA

Power supply: 24VDC system power supply, maximum 0.23A

Number of channels: 24 independent dry contacts/active inputs

Signal type: Supports dry contact, NPN/PNP transistor signals

Isolation: Electrical isolation between channels, strong anti-interference ability

Protection level: IP20, panel installation

Working temperature: -25 ° C to+70 ° C

Certification: CE, UL, Class 1 Div.2 A/B/C/D group, T4a/T3c explosion-proof

Weight: Approximately 1.875kg

Firmware version: ROM 3.23

Origin: Made in the United States

Application and Adaptation

Adaptation systems: Siemens APACS+, Moore 353, Quadlog and other DCS systems

Application scenarios: On/off signal acquisition for chemical, power, metallurgical, and water treatment industries

Installation: Standard rack mounted, panel mounted, supports hot swappable (some configurations)

ending

39SDM024DCCBN, with high isolation, wide temperature range, explosion-proof certification, and 24 channel stable acquisition as its core, is a classic DI module of APACS+system, widely used for maintenance and spare parts replacement of old DCS systems.

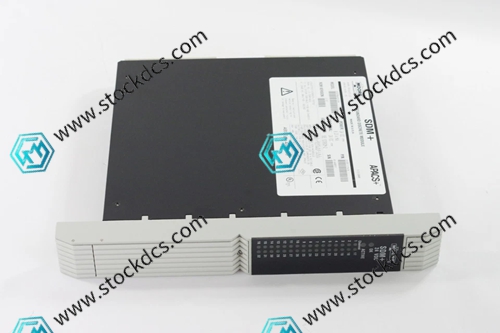

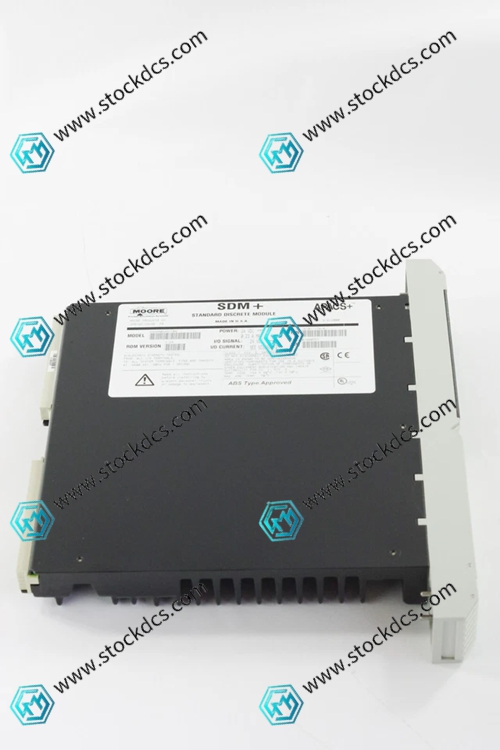

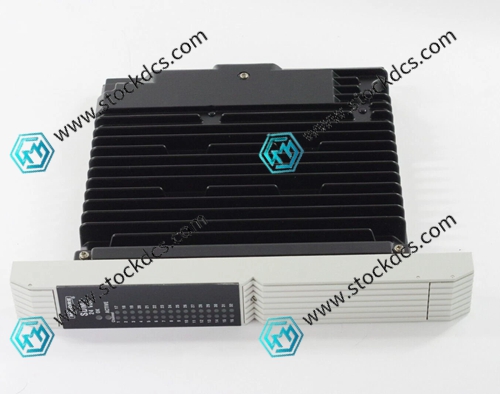

Product imag
