INDRAMAT 109-525-3201A-18 Industrial Control System Board

INDRAMAT 109-525-3201A-18 Industrial Control System Board

Product Details Introduction

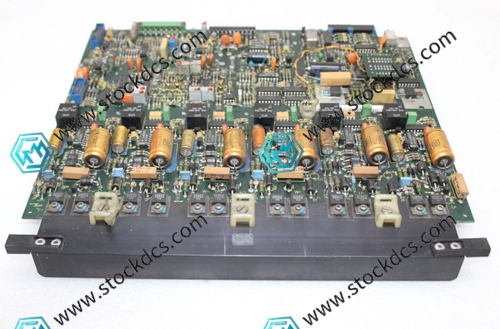

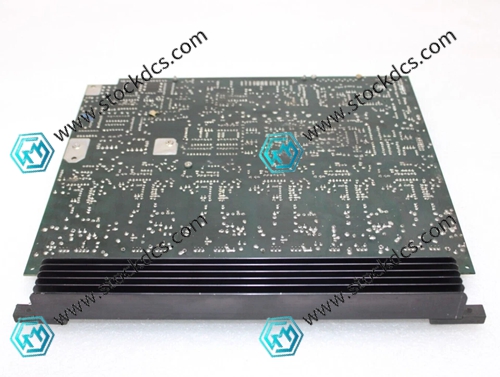

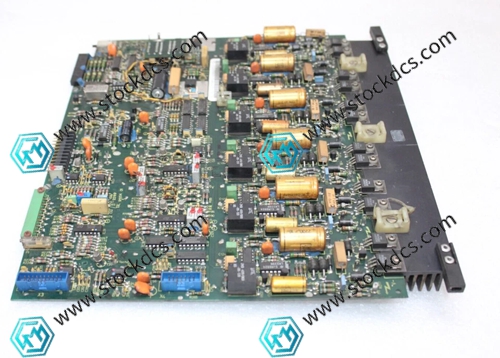

INDRAMAT 109-525-3201A-18 is a TDM series servo drive control board under Bosch Rexroth, designed specifically for high-precision industrial servo systems. As the core control unit of the drive, it is widely used in equipment such as CNC and automated production lines.

Belonging to the INDRAMAT 109-525 series, hardware version A-18, it is a dedicated control board for TDM series servo drives.

The core is responsible for the closed-loop control of the servo system's current loop, speed loop, and position loop, ensuring the precise operation of the motor.

Compatible with TDM 1.2-100-300-W1 and other servo drives, with strong compatibility.

It can process multiple encoder feedback signals to achieve high-precision position and velocity acquisition.

Integrated IGBT driver circuit, outputting stable driving signals to control the operation of the power module.

Equipped with analog and digital I/O interfaces, supporting the interaction of external control commands and status signals.

Built in multiple hardware protection mechanisms such as overcurrent, overvoltage, undervoltage, overheating, overload, etc.

Real time monitoring of bus voltage, motor temperature, and encoder status to quickly diagnose faults.

Supports multiple control signal input modes such as pulse commands and analog commands.

Industrial grade component selection, with anti electromagnetic interference and anti vibration performance that meets industry standards.

The working voltage is compatible with a 24VDC control power supply and a 300-540VDC DC bus voltage.

Working temperature range -20 ° C to+60 ° C, suitable for long-term operation in harsh industrial environments.

The standard size of the Eurocard card is approximately 310mm × 290mm × 30mm, with installation specifications.

Fast control response speed, excellent dynamic performance, meeting the requirements of high-speed and high-precision positioning.

Adopting multi-layer PCB design, it has strong electrical stability and effectively reduces signal interference and loss.

This control board is the core component of traditional industrial servo drive systems. With reliable performance and precise control capabilities, it is widely used in fields such as CNC machine tools, textile machinery, packaging equipment, etc. Currently, it is mainly used as second-hand, refurbished, and repair parts, and is a key accessory for the maintenance and replacement of old equipment.
