Honeywell 51404223-001 Temperature Plate Assembly

Honeywell 51404223-001 Temperature Plate Assembly

Product Details Introduction

51404223-001 is a dedicated temperature acquisition board for Honeywell DCS systems, used to collect and process temperature signals such as thermocouples and RTDs, providing accurate temperature data for industrial process control.

Support multiple temperature sensor signal inputs such as thermocouples and thermal resistors

Built in cold end compensation circuit ensures stable temperature measurement accuracy

Multi channel temperature channel acquisition, capable of simultaneously monitoring multiple temperature measurement points

Equipped with signal isolation design, effectively resisting industrial electromagnetic interference

High precision A/D conversion, accurate and reliable temperature measurement

Support sensor disconnection, short circuit detection, and fault prompt

Hardware filtering function to reduce the impact of noise on measurement results

Compatible with Honeywell TDC3000, Expert, and other control systems

Industrial grade wide temperature operation, suitable for harsh on-site environments

Onboard status indicator light for easy viewing of working and fault status

Adopting a multi-layer circuit board design, it is earthquake resistant, anti-oxidation, and has a long lifespan

Can be directly installed in the system rack, with standardized installation methods

Stable signal transmission meets the requirements of continuous production monitoring

Commonly used in high-temperature process scenarios such as chemical, power, metallurgy, etc

As the core temperature control component of the system, it ensures the stability of the production process

ending

The temperature plate assembly has high precision, strong anti-interference ability, and stable operation, and is an important component for temperature monitoring and control in Honeywell DCS systems.

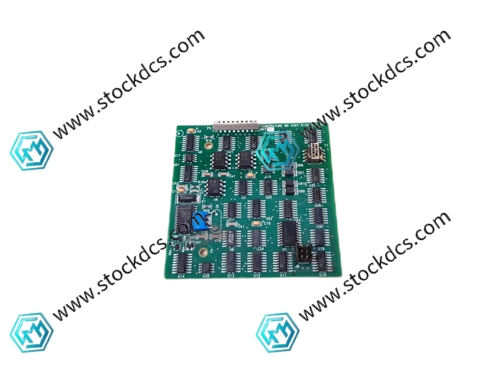

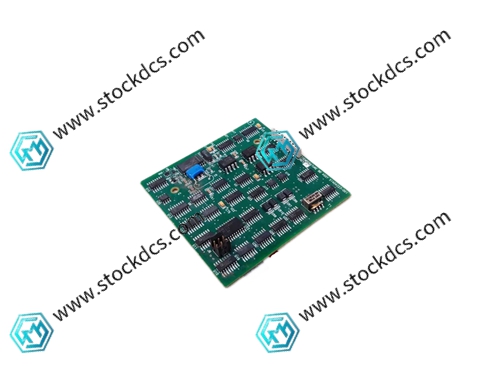

 Product imag
