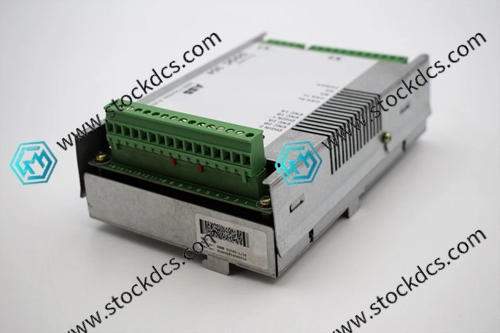

ABB DSQC354 3HNE00065-1/05 Encoder Interface Module

DSQC354 (3HNE00065-1/05) is an ABB robot specific encoder signal processing and power supply module, used to receive external encoder pulses, provide encoder power, and send signals to the controller to achieve precise position and velocity feedback of the robot axis/external axis.

Brand and model: ABB DSQC354, material number 3HNE00065-1/05, also known as ENC-01 encoder board.

Adaptation system: S4, S4C, S4C+series robot controllers, compatible with IRB 6400, IRB 2400 and other models.

Core functions: Receive incremental encoder signals, supply power to the encoder, shape and isolate signals, count pulses and determine direction.

Encoder type: Supports 2-phase orthogonal incremental encoders (A/B phase, 90 ° phase difference), compatible with conveyor/external axis position feedback.

Power output: 24V DC (10-30V DC), maximum output current 50-100mA, directly drives the encoder.

Signal specifications:

Input: A/B phase orthogonal pulse, 50-100mA, supports up to 2kHz pulse frequency.

Resolution: Improved counting accuracy through 4th harmonic (A/B phase), suitable for encoders with 1250-2000 pulses per meter.

Signal isolation: The encoder side and controller side are electrically isolated to resist industrial electromagnetic interference.

Communication interface: Connected to the internal bus of the robot controller, plug and play, no additional configuration required.

Status indication: LED displays power, signal reception, and communication status.

Installation method: S4C+control cabinet expansion slot direct insertion installation.

Physical parameters: Size approximately 12.4 × 12.6 × 2.2cm, weight approximately 0.1-0.2kg, protection level IP20.

Environmental adaptation: Working temperature -20 ℃~+55 ℃, humidity 5% -95% (non condensing).

Application scenarios: robot external axis, conveyor belt tracking, positioner, rotary table and other scenarios that require precise position closed-loop.

Product status: discontinued, a classic spare part for S4C+system, mainly for refurbishment/inventory in the market.

This module is characterized by stability, reliability, signal isolation, and adaptability to wide range encoders, and is a key component for ABB S4 series robots to achieve high-precision motion control of external axes.
