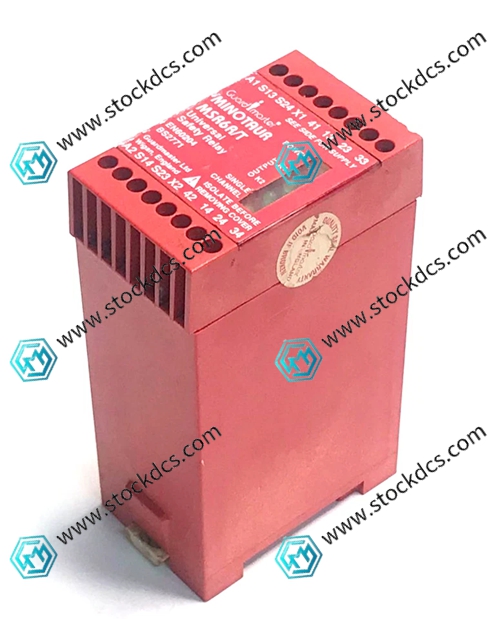

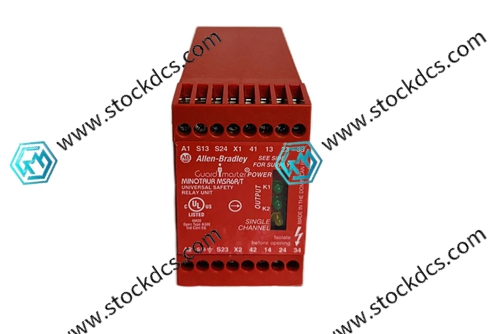

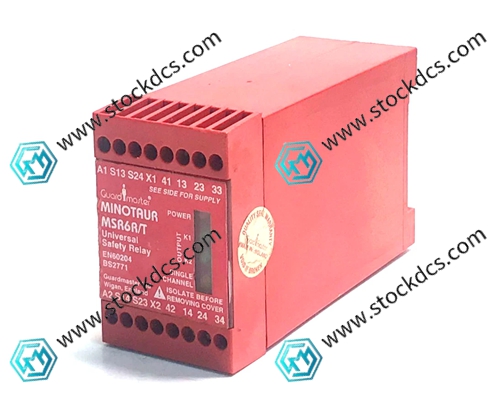

MSR6R/T safety relay

MSR6R/T (Allen Bradley Guardmaster Minotaur series, model 440R-C23017/18/19) is an industrial grade single function safety monitoring relay used for emergency stop, safety door interlock and other safety circuits, meeting EN ISO 13849-1 Cat.3 and Stop 0 safety levels.

1、 Core parameters

Brand and Model: Allen Bradley (Rockwell) Guardmaster, Model MSR6R/T, Corresponding to 440 R‑C23017（24V AC/DC）、440R‑C23018（110V AC）、440R‑C23019（230V AC）

Input configuration: The internal switch can choose 1 NC single channel (low-risk) or 2 NC dual channels (high-risk), and if the difference between the two channels is greater than 0.5s, the output will be locked

Output configuration: 3 sets of NO safety redundant outputs, 1 set of NC auxiliary output

Supply voltage: 24V AC/DC, 110V AC, 230V AC (50/60Hz)

Reset method: automatic/manual monitoring reset (requires external normally open reset button)

Safety level: EN 954-1 Cat.3, EN ISO 13849-1, IEC 62061, Stop 0

Physical specifications: 45mm wide, DIN rail installation, weight approximately 0.46kg

Working environment: -10 ℃~+55 ℃, humidity ≤ 90% RH

Product status: discontinued at the end of 2017, replacing model 440R-S13R2

Application scenarios: emergency stop circuit, safety door interlock, safety grating monitoring, equipment safety shutdown control

2、 Key characteristics

Dual channel monitoring: If the dual channel input is not synchronized for more than 0.5 seconds, immediately cut off the safety output to prevent single channel failure

Redundant safety output: 3 sets of independent NO contacts to ensure reliable safety cut-off

Flexible reset: automatic reset (low-risk) or manual monitoring reset (high-risk, reset after confirming safety)

Wide voltage adaptation: covering 24V/110V/230V, compatible with global industrial power grids

Compact design: 45mm ultra-thin shell, saving control cabinet space

3、 Key points of wiring (typical)

Power supply: A1/A2 connected to corresponding voltage (24V/110V/230V)

Safety input: S13- S14, S23- S24 emergency stop/safety door NC contact (dual channel)

Reset: Connect S34-S12 to the normally open reset button (manual mode)

Safe output: 13-14, 23-24, 33-34 (3 sets of NO) connected to the safety circuit

Auxiliary output: 43-44 (NC) connected to PLC status monitoring
