2711-T10C15 touch screen panel

2711-T10C15 touch screen panel

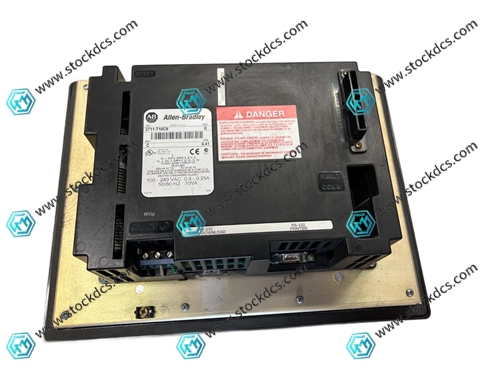

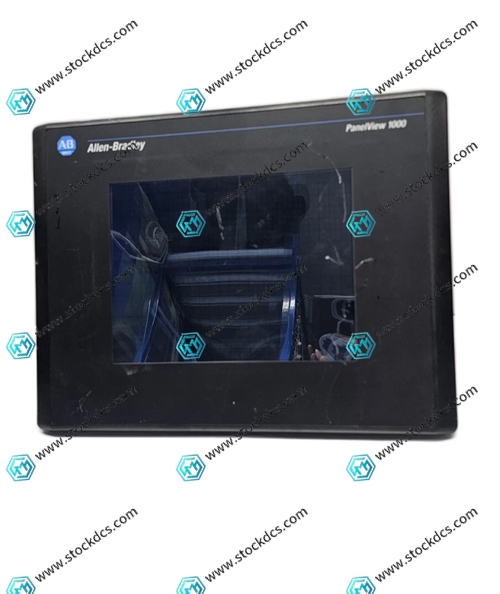

Product Details Introduction

Belonging to the Allen Bradley PanelView Standard 1000 series pure touch screen industrial HMI, it has been officially discontinued and focuses on operator monitoring and control in ControlNet communication scenarios.

10.4-inch (10 inch level) color TFT display screen, resolution 640 × 480, typical backlight half life of 50000 hours.

Adopting analog resistive single point touch screen, no keyboard required, suitable for fast touch operation, with a click life of millions of times.

The front panel protection level is NEMA 4X/IP65, dustproof and waterproof, suitable for outdoor and harsh industrial workshops.

Standard ControlNet communication port+RS-232 printer specific port, different from DeviceNet version 2711-T10C10.

Wide voltage AC power supply 85-264 VAC, 47-63 Hz, global power grid, recommended independent grounding and overcurrent protection.

Typical power consumption of about 39 W, industrial grade power supply design, stable long-term operation.

Built in 256 KB non-volatile user flash memory for storing images, formulas, and alarm data.

The configuration software is PanelBuilder32/RSView32, which supports multilingual interfaces and batch program deployment.

Working temperature 0-55 ℃, storage temperature -25-70 ℃, 5-95% no condensation humidity tolerance.

It has industrial grade anti vibration and anti impact performance, EMC meets relevant IEC standards, and is resistant to strong electromagnetic interference.

Support ATA card for program backup, recovery, and fast cloning of multiple devices.

Embedded installation on the panel, it is strictly prohibited to plug and unplug the ControlNet bus and power cord with power on, and grounding must comply with the ControlNet system specifications.

Through international safety and electromagnetic compatibility certifications such as CE, C-UR-US, and C-Tick, it can be used in the European, American, and Australian markets.

The recommended upgrade model for discontinuation is PanelView Plus 1000 series (such as 2711P-T10C21D8S), which requires redeveloping the HMI program and adjusting the communication network topology.

Overall, 2711-T10C15 is a classic 10 inch touchscreen HMI under the traditional ControlNet network, currently in service on a large number of existing devices; Its core advantages lie in high protection, native compatibility with ControlNet, and wide voltage power supply; When upgrading and migrating, program refactoring and communication protocol/hardware adaptation are the two core tasks.
