Introduction to 1746-OB16 DC Output Module

1746-OB16 is a Rockwell SLC 500 series 16 channel transistor DC output module used to drive various DC loads. The following is a detailed introduction:

Belonging to the SLC 500 series 16 channel source DC output module

Output type is PNP transistor, high level is effective

The rated working voltage is 24V DC, and the applicable range is 10-30V DC

The maximum output current of a single channel is 0.5A, and the total current of the module does not exceed 4A

Fast switch response speed, suitable for high-frequency control scenarios

Each channel is equipped with an independent LED status indicator light

Optoelectronic isolation between output and backplane, strong anti-interference ability

Equipped with short-circuit and overload protection functions

Adopting detachable terminal blocks for easy installation and maintenance

Occupy a single slot position in the SLC 500 rack

Powered by PLC backplane 5V DC, no external auxiliary power supply required

The working temperature range meets the requirements for industrial site use

The output signal is directly mapped to the PLC output mapping area

Commonly used to drive solenoid valves, indicator lights, relays, and other equipment

This model has been discontinued, and the market is dominated by second-hand and refurbished spare parts

In summary, 1746-OB16 is a commonly used DC output module in SLC 500 control systems, with a compact structure and stable performance, widely used in switch control of various industrial automation equipment.

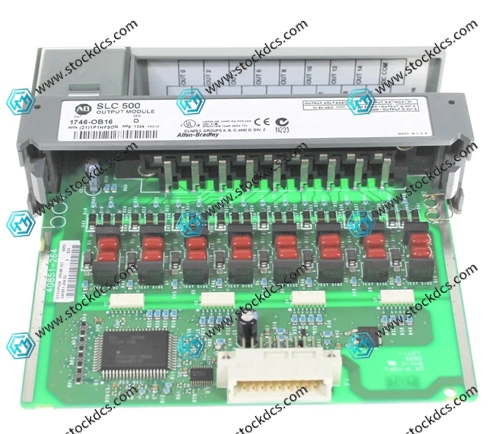

1746-OB16 Product imag
