UniOP MKDG-05-0045 Operating Interface Module

Uniop ETOP11-0050 monitor

Product Details Introduction

Introduction to UniOP MKDG-05-0045 Operation Interface Module

1、 Product Overview

UniOP MKDG-05-0045 is a human-machine interface (HMI) module with graphical display and function keys launched by Exor, suitable for industrial automation control systems, with good operability and compatibility. This module belongs to a non touch panel, mainly operated through buttons, suitable for complex industrial environments.

2、 Main technical parameters

Display screen: 240 × 64 pixel monochrome LCD display screen

Operation mode: No touch function, using 20 function keys with replaceable labels

Indicator lights: 25 user controllable LEDs, 5 system status LEDs

Communication interface: Built in RS-232, RS-485, RS-422, 20mA current loop, supporting pluggable communication expansion modules (such as CANopen, DeviceNet, Profibus, Ethernet, etc.)

Programming software: compatible with UniOP Designer software, supporting graphic configuration, macro commands, alarm management, recipe data, history, user permission management and other functions

User memory: standard 512KB, expandable up to 1MB

Real time clock: built-in, supports event recording and timestamp

Power input: 18-30V DC, power consumption approximately 400mA @ 24V

Installation method: panel embedded installation

Weight: Approximately 1.8 kilograms

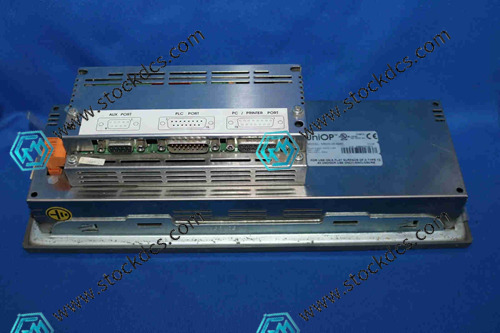

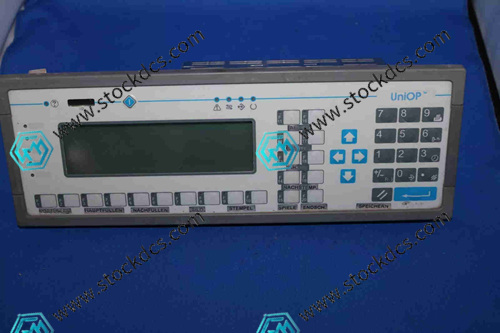

Product imag
