TEL Tokyo Electron 2L81-050035-11 Interface Module

TEL Tokyo Electron 2L81-050035-11 Interface Module

Product Details Introduction

Introduction to TEL Tokyo Electron 2L81-050035-11 Interface Module

Product model: 2L81-050035-11

Product Name: Interface Module

Manufacturer: Tokyo Electron Ltd. (TEL)

Applicable equipment: Used in semiconductor manufacturing equipment for TEL, such as CVD, Etcher, Coater/Developer systems, etc

1、 Core functions

Signal transfer and relay

Used to connect various functional modules within the device, such as control boards, I/O modules, sensors, and actuators, to complete signal transfer, amplification, or matching.

Communication adaptation

Coordinate different communication protocols or signal standards, such as TTL and RS signals, voltage level matching, etc.

Connecting bridges between modules

Connect the main control system and subsystems to ensure modular and collaborative operation of the equipment.

Power or data distribution

Distribute low-voltage power supplies (such as+5V,+12V) or distribute digital signals to multiple sub channels.

2、 Application Fields

Process control system: acts as a control signal bridge in modules such as reaction chamber temperature control, gas control, pump valve control, etc.

I/O relay center: forwards digital/analog signals from on-site devices to the main control unit.

Communication interface extension: used to expand the data communication capabilities of TEL devices, supporting multi-channel and multi protocol connections.

System level signal integration: Centralize and unify multiple sub modules into the system backbone structure for easy debugging and maintenance.

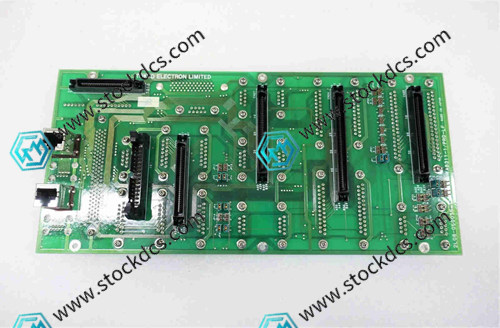

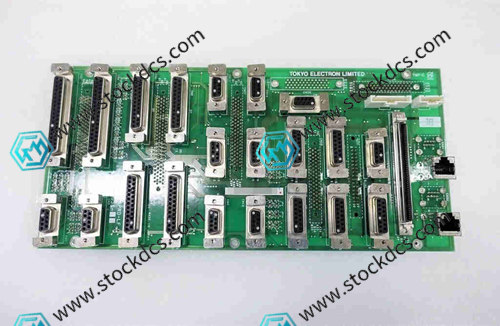

Product imag
