TEL Tokyo Electron 3880-2000121-11 Analysis Board
- Goods status： new/used
- Delivery date: stock
- The quality assurance period： 365 days
- Phone/WhatsApp/WeChat：+86 15270269218
- Email：stodcdcs@gmail.com
- Tags：
- Get the latest price：Click to consult
TEL Tokyo Electron 3880-2000121-11 Analysis Board
Product Details Introduction
Product model: 3880-200121-11
Product Name: Analyzer Board
Manufacturer: Tokyo Electron Ltd. (TEL)
Component category: Signal acquisition and analysis module
1、 Product Overview:
The 3880-200121-11 analysis board is a key functional board in TEL semiconductor equipment, responsible for real-time analysis and processing of collected analog or digital signals. This module typically integrates signal filtering, amplification, conversion, and preliminary data analysis functions to ensure accurate monitoring and control of equipment process parameters.
2、 Core functions:
Function Description
Signal acquisition receives analog/digital signals from multiple sensor inputs
Signal conditioning includes filtering, amplification, isolation, and level conversion
Real time processing and status judgment of data analysis implementation signals
Alarm output triggers an alarm signal when detecting anomalies
The communication interface provides feedback on the processing results to the main control system
3、 Technical parameters (speculation):
Parameter Description
Input signal type: analog voltage, current, digital switch quantity, etc
Multi channel design, the specific number of channels depends on the application
Sampling accuracy 12 bit or 16 bit ADC
Sampling frequency supports high-frequency sampling to ensure real-time performance
Communication methods support RS232, RS485, TEL dedicated bus, etc
Power requirement: 5V or 12V DC power supply
4、 Application areas:
Vacuum system pressure monitoring
Temperature control and monitoring
Signal analysis of flow and position sensors
Equipment safety interlock status judgment

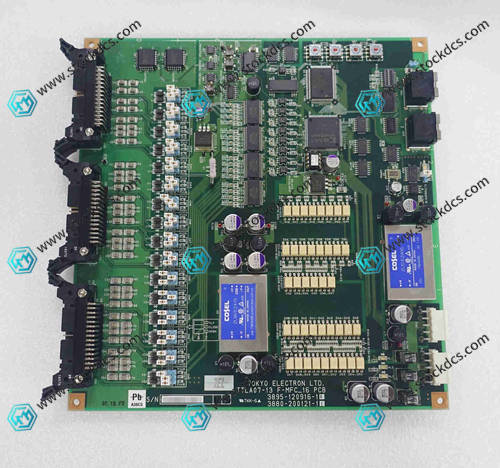

Product imag
