TEL Tokyo Electron 3884-200219-11 Analysis Board

TEL Tokyo Electron 3884-200219-11 Analysis Board

Product Details Introduction

Product Name: Analysis Board

Product model: 3884-200219-11

Manufacturer: Tokyo Electron Ltd. (TEL)

Component Type: Signal Analysis Module/Processing Board/Function Board

1、 Product Overview:

The 3884-200219-11 analysis board is a specialized functional module used in Tokyo Electron (TEL) semiconductor equipment. Its main function is to collect, analyze, and preliminarily process analog or digital signals from sensors, probes, or process systems, and feedback the results to the upper control system or for local control judgment.

This board is usually installed in control cabinets or signal processing units, and is one of the key links to achieve real-time monitoring of equipment and process control accuracy.

2、 Core functions:

Function module description

Signal acquisition and reception of multiple input signals, supporting analog quantities (such as voltage/current) or digital quantities

Data processing involves hardware level or embedded processing functions such as filtering, amplification, conversion, and comparison

Process judgment is used to analyze whether specific signals (such as temperature curves, pressure changes, position feedback) are within the allowable range

When the monitoring data is abnormal, the alarm trigger can drive the alarm output or stop the corresponding process action

The data processed through communication feedback is transmitted to the main control system or HMI panel for display through the interface

3、 Possible technical parameters (reference TEL analysis board general design speculation):

Project parameter range (typical)

Input signal types include analog signals (0-10V, 4-20mA), digital signals, thermocouples, etc

Number of signal channels 4-16 channels (depending on model)

Resolution 12-16 bit ADC (analog signal)

Data update rate supports high-speed sampling (such as 1-10 kHz)

The communication interface transmits data through TEL internal bus or RS232/RS485/EtherCAT

The common power input is 5V or 12V DC

Card structure plug-in or with edge connectors, suitable for TEL control racks

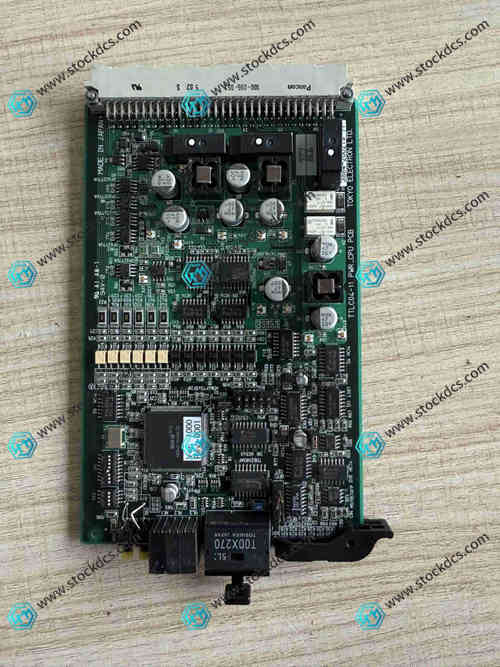

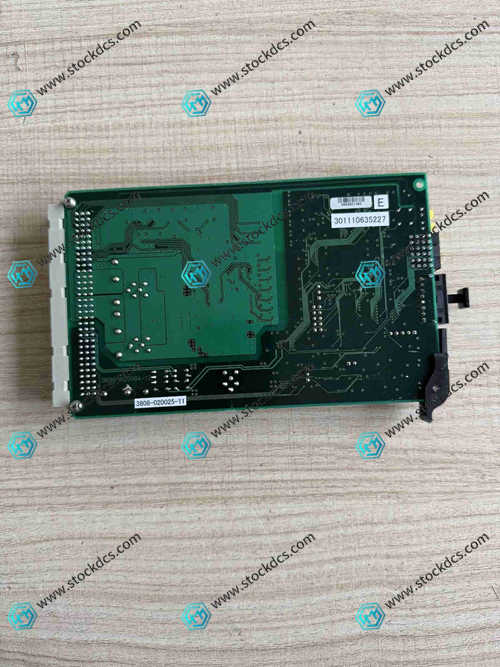

Product imag
