TEL CX81-050024-V2 PCB Control Board

TEL CX81-050024-V2 PCB Control Board

 Introduction

TEL CX81-050024-V2 PCB Control Board

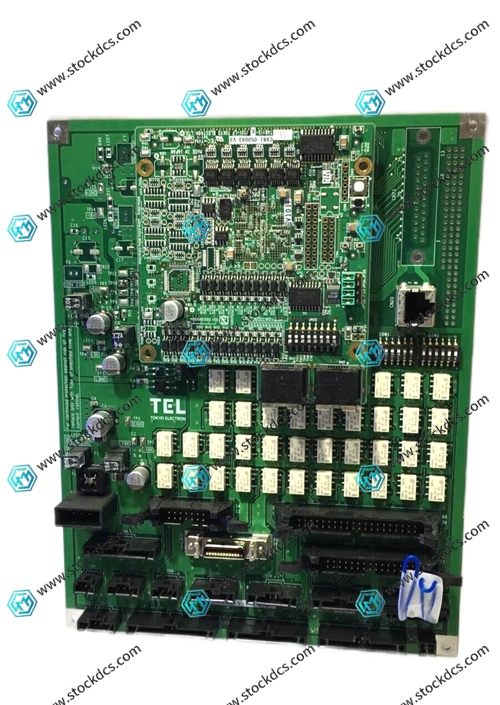

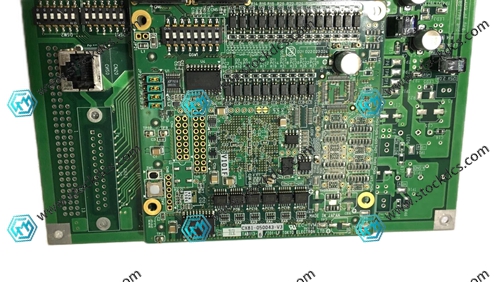

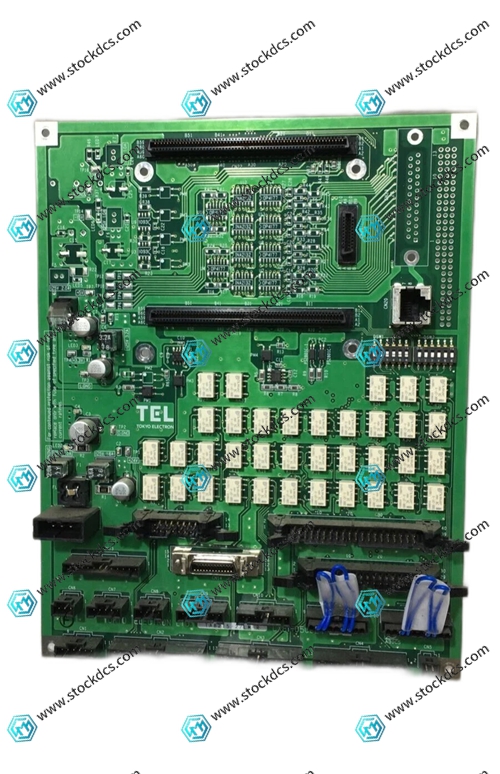

Introduction: TEL CX81-050024-V2 is a dedicated main control PCB board for Tokyo Electronic Semiconductor process equipment, which coordinates cavity signal acquisition and process logic control, and is compatible with wafer etching and deposition equipment.

Multi channel signal acquisition, docking with temperature, vacuum, and limit sensors of various types

Onboard optoelectronic isolation circuit to isolate RF electromagnetic signal interference

Multi layer shielded PCB wiring reduces cavity clutter interference

Built in hardware interlock protection, automatically cutting off process output in case of abnormal conditions

Original factory standard plug-in card structure, easy disassembly and replacement of cabinets

Exclusive device communication protocol, no debugging required for docking with the main control of the entire machine

Local storage of process formulas, without loss of power-off parameters

Multiple digital IO channels, controlling air valves, heating, and RF units

Equipped with a status indicator light, quickly locate the fault point of the circuit

Clean grade industrial components, suitable for dust-free wafer workshops

0-50 ℃ wide temperature range, supporting 24-hour continuous mass production of equipment

Triple hardware protection design for overvoltage, overcurrent, and short circuit

Low latency data transmission, multi cavity action synchronization without deviation

Standardized terminal layout, firm and not easily loose wiring

Compatible with TEL series etching and thin film deposition equipment

Conclusion: TEL CX81-050024-V2 is a semiconductor cavity core control board that stably controls the entire wafer process flow.
