 Introduction

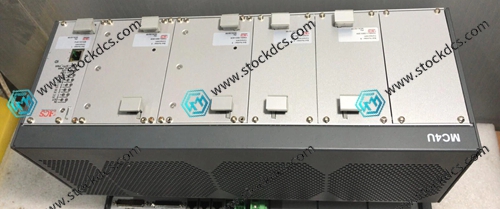

ACS MC4U-02100 Automation Controller Module

Introduction: ACS MC4U-02100 is a 2-axis modular drive control integrated motion controller, equipped with EtherCAT bus, suitable for precision automation platform positioning control.

Built in dual axis servo drive, single module independent control of two axis motors

High speed EtherCAT bus with short communication cycle and strong real-time performance

Support linear and circular interpolation, with smooth and low shaking motion trajectory

Compatible with multiple encoders, high-precision position feedback acquisition

40kHz high-frequency PWM control, resulting in lower motor operating noise

Multiple hardware protections, automatic shutdown due to overcurrent, overheating, and overload

Modular plug-in structure, easy expansion, maintenance and disassembly

Supports ACSPL+and PLCopen dual programming modes

Equipped with multiple digital IO channels, it can be connected to sensors and limit switches

Metal shielded cabinet to resist electromagnetic interference in the workshop

0-55 ℃ wide temperature operation, capable of continuous operation for 24 hours

Multi unit network expansion, the entire system can expand up to 64 axes

Integrated specialized debugging software, with intuitive and convenient parameter settings

Universal wide voltage power supply, suitable for various equipment power supply conditions

Equipped with fault self checking function, quickly output abnormal codes

Conclusion: ACS MC4U-02100 has high integration and precise positioning, and is widely used in semiconductor testing, laser processing, and precision dispensing equipment.
