SHINKO SBX93-100097-1 Communication Module

SHINKO SBX93-100097-1 Communication Module

Product Details Introduction

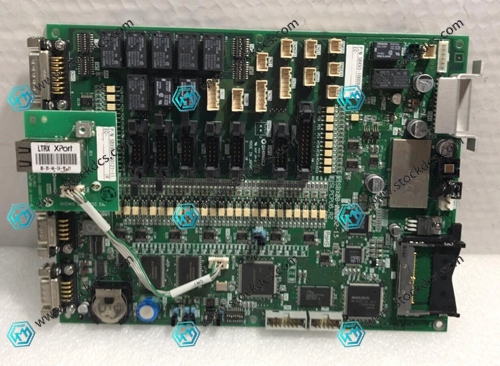

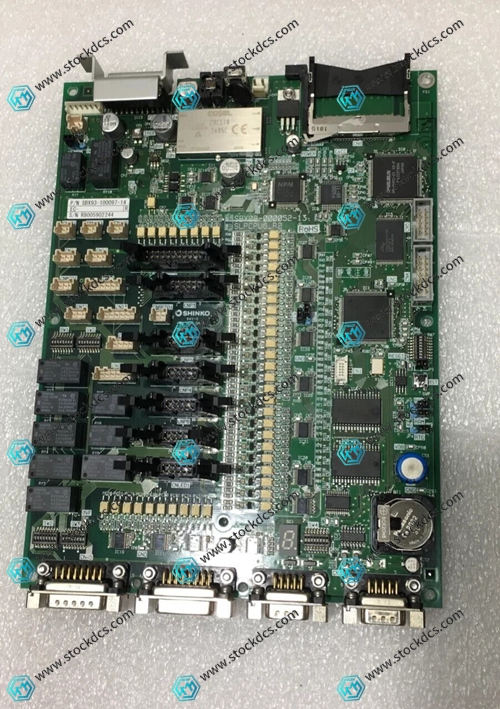

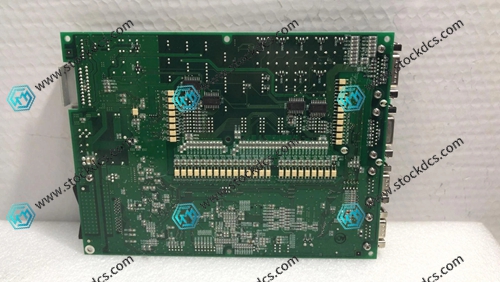

SHINKO SBX93-100097-1 Communication Module

Introduction: This SHINKO communication board is compatible with semiconductor etching equipment and is responsible for signal conversion and communication within the entire machine.

Original factory matching interface board, compatible with Tokyo Electronics series process machines

Multiple sets of plug-in terminals for connecting sensor and valve body signal lines

Low signal transmission delay and stable synchronization of device actions

Line with isolation protection to resist electromagnetic interference in the workshop

Equipped with a built-in verification circuit to reduce the probability of data transmission errors

Channel independent indicator light, quickly locate line faults

Real time uploading of chamber pressure and gas path operation data

Integrated overvoltage and electrostatic protection to prevent component breakdown

Small integrated PCB, easy to install in small machine spaces

High temperature resistant substrate, suitable for long-term constant temperature conditions of equipment

Reinforced welding process, less prone to breakage in vibration environment

Standardized buckle interface, easy and quick disassembly and replacement

Multi layer circuit layout to reduce signal crosstalk

Board anti-corrosion coating, resistant to trace corrosive gases

Coordinate bidirectional signal interaction between the main control and each cavity unit

Conclusion: SHINKO SBX93-100097-1 has stable and durable transmission, and is a core communication spare part for semiconductor equipment.

Product imag
