NIKON 4S013-534-1 Interface Board

NIKON 4S013-534-1 Interface Board

Product Details Introduction

NIKON 4S013-534-1 Interface Board

beginning

NIKON 4S013-534-1 is the original signal interface board of Nikon NSR lithography machine, responsible for signal conversion and transmission of various modules of the machine.

Multiple sets of standard plug-in interfaces, connecting the main control and peripheral sensors

Low signal transmission delay, matching high-speed timing of lithography equipment

Equipped with channel indicator light, quickly locate line faults

Built in static electricity and overcurrent protection to prevent chip burnout

Separate wiring of strong and weak electrical lines to resist electromagnetic interference in the workshop

Gold plated fingers, stable and undamaged contact during long-term insertion and removal

Card type backboard installation, easy to disassemble and replace

Industrial wide temperature adaptation, dust-free production line operates continuously and stably

Factory fixed communication logic, power failure does not require reconfiguration

Small board size, saving internal space in the cabinet

Onboard heat sink, controllable operating temperature at full load

The silk screen of the circuit is clear, and it is convenient to distinguish channels for maintenance wiring

Compatible with Nikon's full range of NSR stepper scanning lithography machines

Modular circuit, only replace corresponding components for local faults

Spare parts for the 4S013 series interface board can be directly interchanged

ending

NIKON 4S013-534-1 has stable signal transmission and adequate protection, and is a dedicated original board for signal interaction of lithography machines.

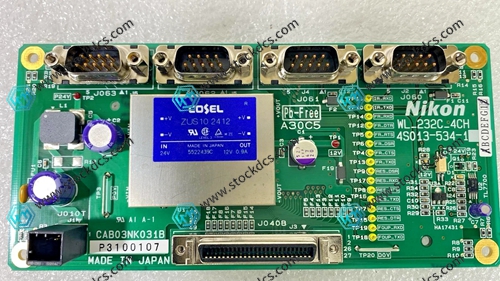

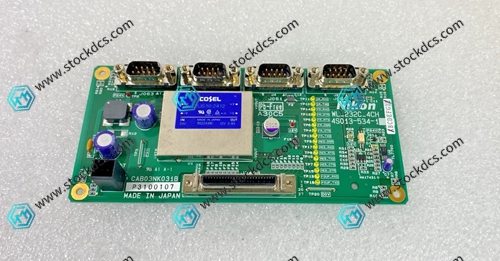

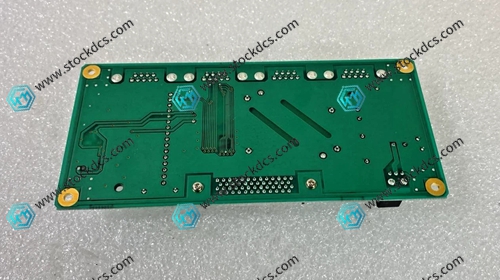

Product imag
