LEICA 301-389.040 Printed Circuit Board

LEICA 301-389.040 Printed Circuit Board

Product Details Introduction

LEICA 301-389.040 Printed Circuit Board Product Features

beginning

LEICA 301-389.040 is a Leica OEM VME bus industrial control printed circuit board, suitable for semiconductor precision testing equipment, with high circuit integration and stable industrial adaptation. The following are the core features.

Standard VME bus slot specification, can be directly embedded into Leica series industrial control cabinets

Double layer high-precision wiring process, low signal transmission loss and minimal interference

Original imported surface mount chips, components are firmly soldered and not easily detached during long-term operation

Multiple sets of adjustable potentiometers on board, easy to calibrate equipment parameters

Multiple filtering circuit design to resist electromagnetic and high-voltage signal interference in the workshop

Lightweight board, with a total weight of only 0.45kg, and no load-bearing pressure for cabinet installation

Partition circuit layout, with power, signal, and control lines isolated from each other

Integrate multiple signal input and output channels, compatible with microscope sensing components

Built in overcurrent and electrostatic protection circuits to reduce component breakdown faults

The original factory silk screen label is clear, and the point and pin markings are easy to inspect and troubleshoot

Wide temperature working design, capable of stable operation in industrial environments ranging from 10-50 ℃

Gold finger thickened with gold plating treatment, wear-resistant insertion and removal, and continuous and stable contact

Modular circuit partitioning, local faults only require replacement of corresponding components

Compatible with Leica precision measurement and wafer inspection control system

Unified original factory process standards, same model boards can be directly exchanged and replaced

ending

In summary, the LEICA 301-389.040 circuit board relies on reliable wiring, complete protection, and standard VME interfaces, making it a dedicated stable control board for Leica precision industrial equipment.

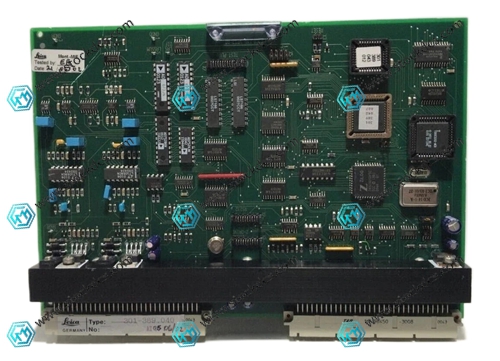

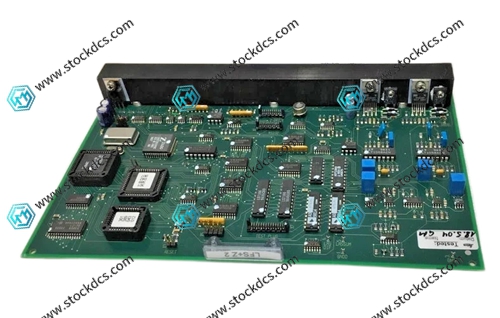

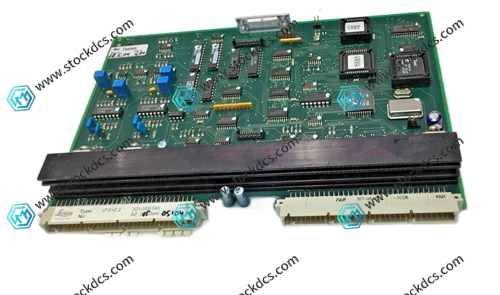

Product imag
