TEL T-3044SS Printed Circuit Board

Introduction: TEL T-3044SS is a specialized PCB control board for Tokyo electronic semiconductor equipment, with stable signal transmission and suitable for dust-free process machines.

Multi layer high-density circuit layout, synchronous transmission of multiple signals

Precise impedance routing to reduce signal interference and distortion

Thickened copper foil circuit, capable of carrying high currents and less prone to heating

Three proof coating on the board surface, moisture-proof, dustproof and corrosion-resistant

Standard card insertion specifications, the slot can be directly plugged in and replaced

Reserve multiple detection points for easy troubleshooting

Highly reliable metalized vias with stable interlayer connections

High temperature resistant substrate, not easily deformed during long-term operation

Clear silk screen identification of components, easy maintenance and replacement

Low particle production process, suitable for clean wafer workshops

Built in shielded circuit, does not interfere with each other on the same cabinet board

Short circuit and overload circuit protection, less likely to burn the board

Original factory specific interface, perfectly compatible with TEL corresponding equipment

Reinforced welding process, capable of withstanding slight vibrations on the production line

Factory full power on testing, with unified and stable performance

Conclusion: TEL T-3044SS is durable and easy to maintain, and is a core circuit board accessory for TEL semiconductor process equipment.

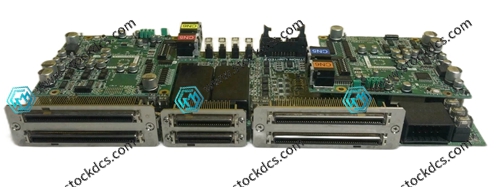

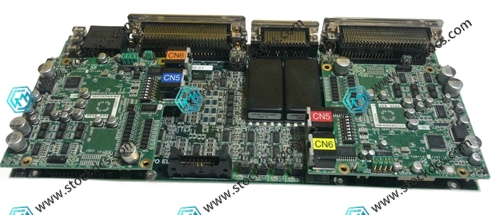

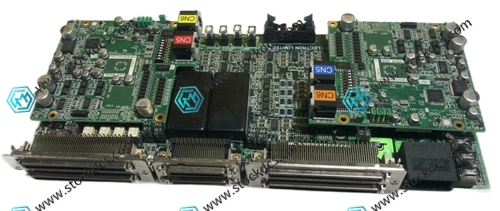

Product imag
