Product Details Introduction

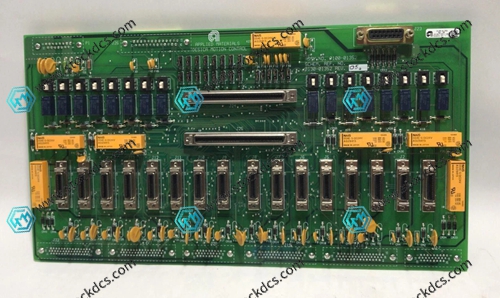

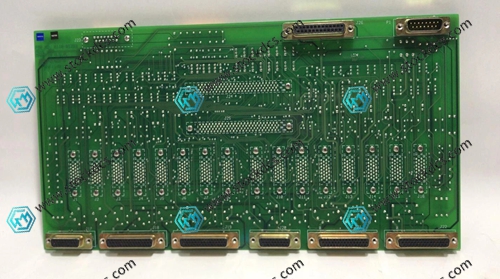

AMAT 0100-01352 Printed Circuit Board

beginning

The AMAT 0100-01352 printed circuit board is a specialized signal transfer PCB board for semiconductor deposition and etching equipment. It is responsible for collecting sensing signals from the machine cavity and connecting weak current circuits, and is suitable for stable operation of clean wafer process equipment.

Original multi-layer precision PCB substrate, impedance accurately matches high-frequency sensing signals

Separate wiring for strong and weak electrical zones to avoid power circuit interference and weak detection signals

Onboard integrated signal filtering circuit to suppress RF and motor electromagnetic clutter

Equipped with photoelectric isolation points, it can block high and low voltage circuit crosstalk and damage components

Integrated multiple hardware protection circuits for overcurrent, static electricity, and short circuit

Lead free and high-temperature resistant solder pads, suitable for long-term operation under constant temperature and clean working conditions in the workshop

Compact board size, suitable for installation stations with narrow equipment cavities

Standardized metal fixing holes, easy to disassemble and fix without the need for modification

Gold plated wear-resistant connector pads, repeatedly inserted and removed, not easily oxidized, poor contact

Multiple independent signal channels, each sensing acquisition channel does not interfere with each other

Low loss copper foil wiring, signal transmission without attenuation and low distortion

Compatible with various sensors such as vacuum pressure, temperature, and gas flow for docking

Cleanroom specific anti-corrosion plate, resistant to trace process gas environment

Power on hardware self-test circuit, quickly identify line open circuit and virtual soldering faults

Single channel independent protection design, local circuit faults do not affect the overall process of the machine

ending

AMAT 0100-01352 printed circuit board has precise wiring and reliable protection, making it an essential original PCB component for semiconductor equipment cavity sensing signal transmission.
