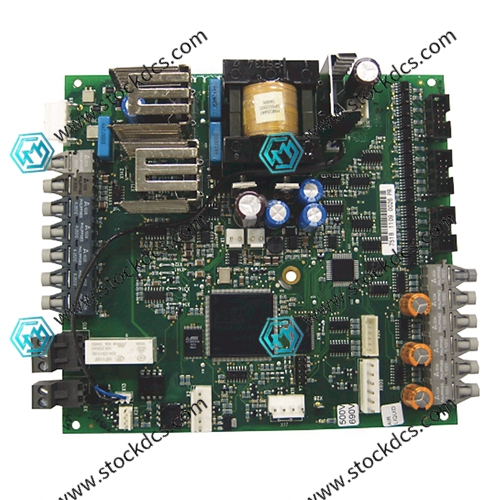

SK-H1-ASICBD-D1030 Controller Module

SK-H1-ASICBD-D1030 Controller Module

Product Details Introduction

SK-H1-ASICBD-D1030 Controller Module Product Features

SK-H1-ASICBD-D1030 is a Rockwell PowerFlex 700 inverter dedicated main control ASIC control board, responsible for motor speed, torque calculation, and drive signal output.

1. Equipped with DSP digital processing chip, the motor control calculation speed is fast

2. Rated adaptation for 400-480V voltage and 1030A high-power driving scenarios

3. Built in multiple motor control algorithms, high precision in speed and torque control

4. Supports fiber optic signal transmission and has excellent resistance to electromagnetic interference

5. Comes with multiple hardware protections for overvoltage, overcurrent, and overheating

6. Built in fault self checking program, which can quickly report frequency converter abnormalities

7. Equipped with built-in cooling air duct and cooling fan, it is not easy to overheat after long-term operation

8. Gold plated slot pins, wear-resistant insertion and removal, stable and reliable electrical connection

9. Compatible with PowerFlex 700H and 700S series frequency converters

10. Integrated multi-channel signal interface, capable of docking and driving various sensors

11. Support industrial practical functions such as inertial crossing and flight start-up

12. Using flame-retardant circuit boards with excellent insulation and protection performance

13. Standard rack plug-in card design, easy and convenient disassembly and maintenance

14. Original SMT process, earthquake and dust resistance, strong industrial durability

15. Comes with firmware program, easy to debug after installation and put into use

The SK-H1-ASICBD-D1030 controller module has stable control and complete protection, and is a core spare part for high-power frequency converters. It is widely used in industrial transmission equipment such as fans, water pumps, and metallurgy.

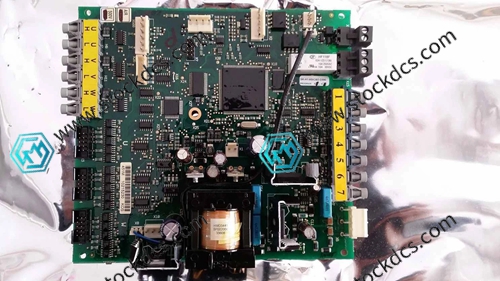

Product imag
