TB83800BK22 current limiter

TB83800BK22 current limiter

Product Details Introduction

TB83800BK22 (GE TB83 series current limiting molded case circuit breaker)

Positioning: General Electric (GE) TB83 series 3-pole 800A current limiting molded case circuit breaker, used for industrial distribution short-circuit/overload protection, with fast current limiting and high breaking capacity.

Brand/Series: GE (General Electric), TB83 (Tri Break) Framework.

Number of poles/rated current: 3 poles, 800A.

Rated voltage: 600V AC.

Breaking ability (AIC): 200kA@480V Industrial grade high score cutoff.

Protection type: Thermal Magnetic Release (LI) - Long Delay Overload+Instantaneous Short Circuit; Interchangeable release unit.

Core features: Current limiting design, fast cut-off within ≤ 5ms in case of short circuit, limiting peak current and reducing equipment impact.

Installation method: Bolt On.

Isolation performance: 1500V AC between poles and 2500V AC between systems, safe and reliable.

Environmental adaptability: Industrial grade wide temperature range, anti vibration, anti EMI, suitable for harsh working conditions.

Standard certification: UL, IEC, CE, in compliance with electrical safety regulations.

Mechanical lifespan: Designed for long service life, suitable for long-term continuous operation.

Application scenarios: High current/high short circuit risk circuits in industrial plants, commercial centers, data centers, and large-scale equipment distribution.

Size and weight: Compact plastic shell, approximately 65kg, suitable for standard cabinets.

Convenient maintenance: The release can be replaced without the need for overall disassembly, reducing operation and maintenance costs.

Security redundancy: dual protection of current limiting and high breaking to prevent the expansion of faults and protect downstream equipment.

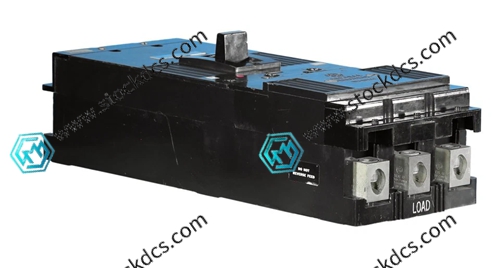

Product imag
