Product Details Introduction

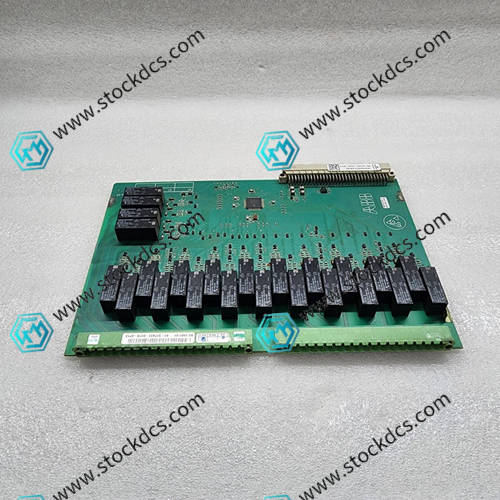

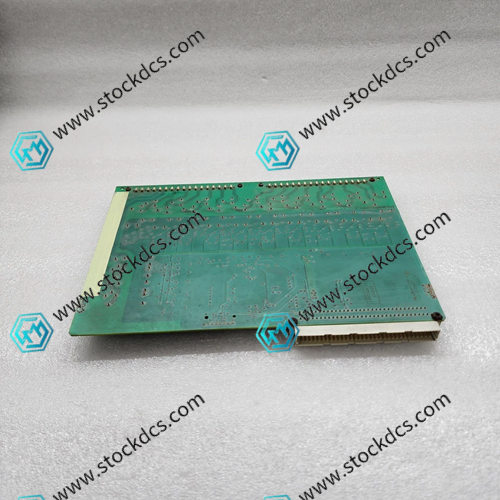

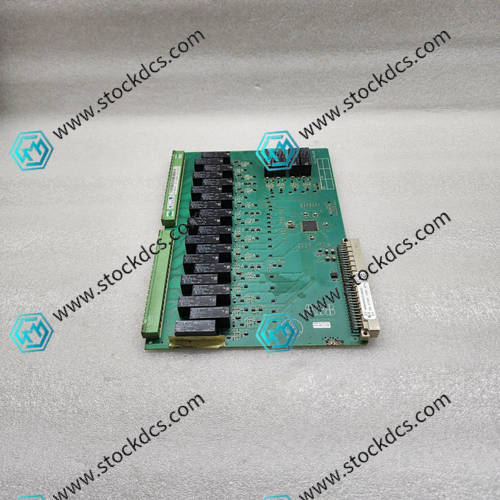

Product Name: ABB 1MRK000614-ABr02 Control Board

Type: Control Board/Control Logic Unit

Manufacturer: ABB

Application equipment: ABB relay protection and automation systems (such as REL, RET, REF series)

1、 Product Function Overview

Control logic execution unit

Used to execute preset logic judgments, action commands, trip/lockout strategies, etc. within the device.

Signal acquisition and processing

Real time sampling and analysis of analog or switch quantities such as current, voltage, frequency, etc.

Communicate and interact with other functional boards

Collaborate with other modules such as power board, communication board, human-machine interface panel, etc. to achieve a complete control process.

Data monitoring and status feedback

Monitor the operating status of the equipment, output alarm, event, and action record information to the system platform or SCADA.

2、 Typical application areas

Digital relay protection device

Applied in ABB's relay protection series (such as REL670, REF615, RET670, etc.), it is one of the key control modules.

Substation automation system

Installed in control and protection screens of high-voltage substations ranging from 110kV to 500kV, used for power grid protection and switching control.

Power plants and distribution systems

Support the protection and status switching logic control of power generation equipment and busbar systems.

SCADA and Remote Control System Interface

Integrate with the communication module to achieve local response to remote monitoring and control commands.

3、 Product Technical Characteristics (Typical)

High speed microprocessor logic control

Multi channel signal input and output support

Supports electromagnetic compatibility (EMC) standards and adapts to harsh power environments

Plug in module structure for easy maintenance and replacement

Support communication protocols such as IEC 61850, Modbus, DNP3, etc. (depending on the configuration of the main device)
