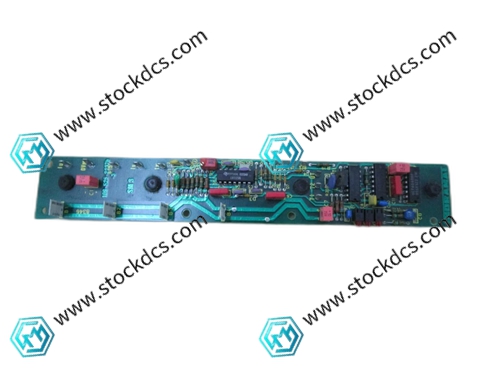

INDRAMAT 109-525-2237A-3 circuit board

INDRAMAT 109-525-2237A-3 circuit board

Product Details Introduction

INDRAMAT 109-525-2237-3 is a servo control dedicated circuit board under Bosch Rexroth's Indramat series. It is mainly used for high-precision servo drive systems, undertaking control operations and signal processing core tasks, and is widely used in industrial automation equipment.

Belonging to the INDRAMAT 109-525 series, hardware version A-3, positioned as a servo drive core control board.

Responsible for the closed-loop PID operation control of the servo system's current loop, speed loop, and position loop.

It can stably process various encoder feedback signals to ensure the accuracy of motor operation.

Equipped with comprehensive analog and digital I/O interfaces, suitable for various control instruction inputs.

Capable of generating reliable IGBT drive signals and accurately controlling drive power output.

Support the drive control of synchronous servo motors and asynchronous servo motors.

Built in multiple fault protection functions such as overcurrent, overvoltage, undervoltage, overload, etc.

Capable of real-time monitoring and diagnosis of encoder faults, bus abnormalities, etc.

Supports common industrial fieldbus communication such as PROFIBUS and SERCOS.

Fast control response speed, excellent dynamic performance, suitable for high-precision positioning scenarios.

Adopting 24VDC control power supply, compatible with 300-540VDC DC bus working environment.

Industrial grade hardware design with strong resistance to vibration and electromagnetic interference.

Wide working temperature range, capable of stable operation in harsh industrial environments.

Adopting a standard board structure design, installation and replacement are relatively convenient.

Suitable for multiple Indramat servo drives such as TDM and DKC.

This circuit board, as a key component of old automation equipment, has stable performance and high control accuracy. It is an important component for maintaining normal operation in fields such as CNC machine tools, robots, packaging and textile equipment.

 Product imag
